Copper Mountain Technologies Launch New 2 Port Compact VNAs With Higher Output Power And Dynamic Range

Monday 7th October 2019

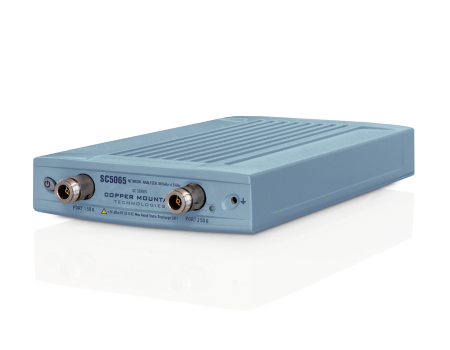

SC5065 VECTOR NETWORK ANALYSER

IMPROVED DYNAMIC RANGE, OUTPUT POWER & SPEED

  • Frequency range: 300 kHz to 6.5 GHz
  • Measured parameters: S11, S21, S12, S22
  • Sweep types: Linear frequency sweep and logarithmic frequency sweep are performed with fixed output power. Linear power sweep is performed at a fixed frequency.
  • Effective Directivity: 46 dB
  • Dynamic range: 140 dB
  • Measurement speed: 16 µs
  • Impedance: 50 Ohm

Click Here For SC5065 Datasheet

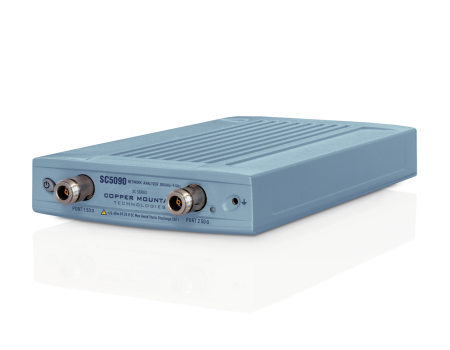

SC5090 VECTOR NETWORK ANALYSER

IMPROVED DYNAMIC RANGE, OUTPUT POWER & SPEED

  • Frequency range: 300 kHz to 9 GHz
  • Measured parameters: S11, S21, S12, S22
  • Sweep types: Linear frequency sweep and logarithmic frequency sweep are performed with fixed output power. Linear power sweep is performed at a fixed frequency.
  • Effective Directivity: 46 dB
  • Dynamic range: 140 dB
  • Measurement speed: 16 µs
  • Impedance: 50 Ohm

Click Here For SC5090 Datasheet
