Werlatone

Category: Quadrature Hybrid Couplers - Principal: Werlatone - Product: (QH11687) 500-6000 MHz, 150 W CW, 2 Way 90 Degree Hybrid Coupler - Available from Melcom

Contact us for price, sample request or query

Downloads

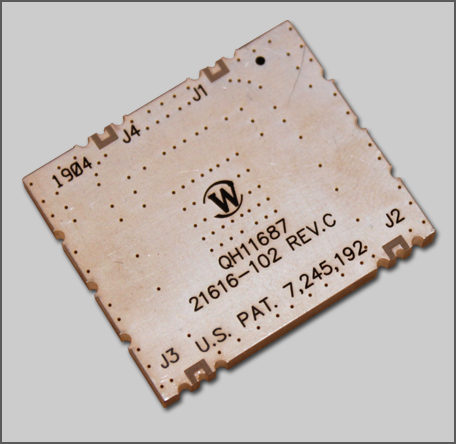

New 2-Way 90° Hybrid Coupler

QH11687

  • Frequency: 500 - 6000 MHz
  • Power: 150 W CW
  • Insertion Loss: 0.75 dB Max.
  • VSWR: 1.40:1 Max.
  • Phase Balance: ± 5° Max.
  • Amplitude Balance:
    • ± 1.0 dB Max. (500 - 600 MHz)
    • ± 0.75 dB Max. (600 - 6000 MHz)
  • Isolation: 17 dB Min.
  • Operating Temp: -55°C to +85°C

Click Here For Datasheet

Melcom supply state of the art analogue, RF & Microwave components, multi-function modules and sub-systems.

Product name: (QH11687) 500-6000 MHz, 150 W CW, 2 Way 90 Degree Hybrid Coupler categories: Quadrature Hybrid Couplers from manufacturer: Werlatone

Suitable for the requirements of the professional electronics market Defence, Test & Measurement.

If you can’t find the product you require please contact us for further information on our extensive range of off-the-shelf and bespoke products or for a quote.

Melcom electronics specialise in Active and Passive Components, Multi-function Modules and Sub-Systems of diverse technologies spanning the frequency spectrum DC to 100 GHz.
