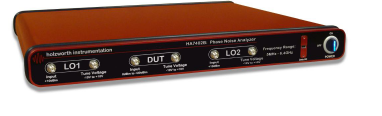

Analysers > Phase Noise Analyser

Since formation in 2004, Phase Noise Measurement has been one of Holzworth's key technology areas of focus.

Accessories

Phase Noise Analyser Accessories

  • HX4920 - 20 GHz Downconverter, Z540, 4 GHz - 20 GHz Input
  • HX4920-2 - 2x20 GHz Downconveters (pair) z540, 4 GHz-20 GHz Input
  • HX5100-X - 2x Electronic Phase Shifters (pair), 1 Octave Bandwidth (specify Fc)
  • CASE-1U - Carrying/Storage Case for HSX/HS9000/HA7000 Series
  • HACC020 - USB Locking Cable 10ft (revision B only)
  • HCM5 - Ethernet Communications Module (revision B only)
  • RACK-1U - 19" Rack Mount Bracket Kit, 90deg Rear Brackets
  • RACK2-1U - 19" Rack Mount Bracket Kit, Straight Rear Brackets

Component  Accessories

  • HACC010 - SMB to BNC Adaptor Cable 3.3ft (1m)
  • HACC007 - AC/DC Adaptor (12V)



Featured Products

Application Note - Additive Phase Noise Measurement

Click Here to Learn more about Phase Noise Measurement



  • Using the Holzworth HX5100 Electronic Phase Shifters, automated additive phase noise measurements are simplified and fast.

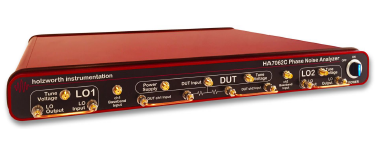

  • Utilises the Holzworth HA7062C with noise floors at -190 dBc/Hz.
  • High performance and cost effective solution for R&D and production applications.
