Misotech

Category: Watertight Combiners - Principal: Misotech - Product: D10520W-10 Watertight Combiner (4 Way, 1-30 MHz, 2500 CW), Part number: D10520W-10 - Available from Melcom

Contact us for price, sample request or query

Downloads

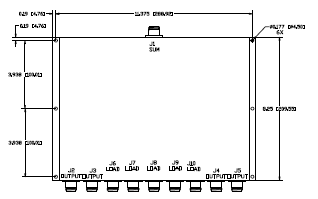

D10520W-10 Watertight Combiner (4 Way, 1-30 MHz, 2500 CW)

  • Frequency: 1 - 30 MHz
  • Power :2500 W CW
  • Insertion Loss: 0.25 dB Max.
  • VSWR:1.30:1 Max.
  • Phase Balance: ± 5° Max.
  • Amplitude Balance: ± 0.3 dB Max.
  • Isolation: 20 dB Min.
  • IP 67 Rated



Melcom supply state of the art analogue, RF & Microwave components, multi-function modules and sub-systems.

Product name: D10520W-10 Watertight Combiner (4 Way, 1-30 MHz, 2500 CW) categories: Watertight Combiners from manufacturer: Misotech

D10520W-10 Suitable for the requirements of the professional electronics market Defence, Space, Test & Measurement, Satcom, Civil Aerospace & Avionics, Broadcast & Commercial Comms, Industrial, Scientific & Medical, Environmental Test.

Part number: D10520W-10 is in stock, contact us for more information or to order.

If you can’t find the product you require please contact us for further information on our extensive range of off-the-shelf and bespoke products or for a quote.

Melcom electronics specialise in Active and Passive Components, Multi-function Modules and Sub-Systems of diverse technologies spanning the frequency spectrum DC to 100 GHz.
