Werlatone

Category: Watertight Combiners - Principal: Werlatone - Product: D8544W Watertight Combiner (2 Way, 20-1000 MHz, 100 CW), Part number: D8544W - Available from Melcom

Contact us for price, sample request or query

Downloads

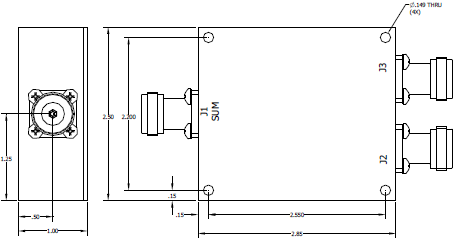

D8544W Watertight Combiner (2 Way, 20-1000 MHz, 100 CW)

  • Frequency: 20 - 1000 MHz
  • Power: 100 W CW
    • 10W / Input Non-Coherent
  • Insertion Loss: 0.5 dB Max.
  • VSWR: 1.35:1 Max.
  • Phase Balance: ± 3? Max.
  • Amplitude Balance: ± 0.35 dB Max.
  • Isolation: 18 dB Min.
  • IP 67 Rated



Melcom supply state of the art analogue, RF & Microwave components, multi-function modules and sub-systems.

Product name: D8544W Watertight Combiner (2 Way, 20-1000 MHz, 100 CW) categories: Watertight Combiners from manufacturer: Werlatone

D8544W Suitable for the requirements of the professional electronics market Defence, Space, Test & Measurement, Satcom, Civil Aerospace & Avionics, Broadcast & Commercial Comms, Industrial, Scientific & Medical, Environmental Test.

Part number: D8544W is in stock, contact us for more information or to order.

If you can’t find the product you require please contact us for further information on our extensive range of off-the-shelf and bespoke products or for a quote.

Melcom electronics specialise in Active and Passive Components, Multi-function Modules and Sub-Systems of diverse technologies spanning the frequency spectrum DC to 100 GHz.
